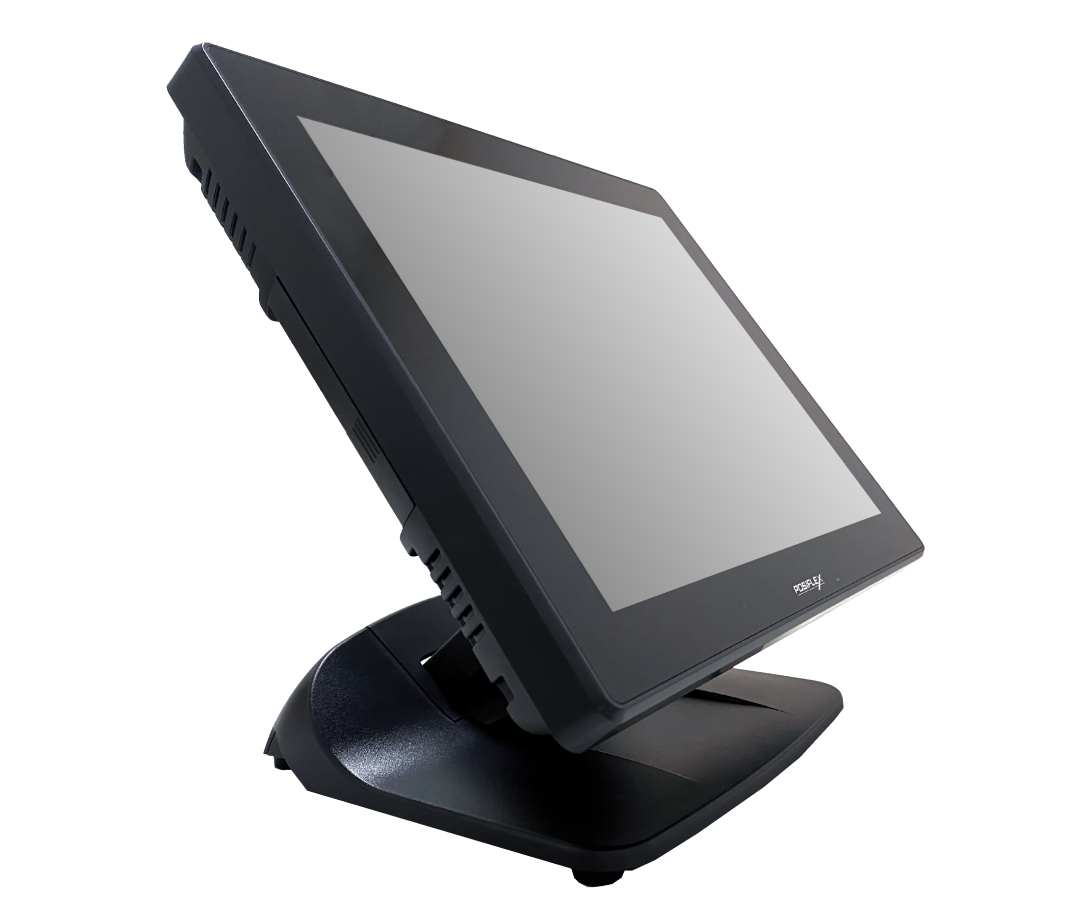

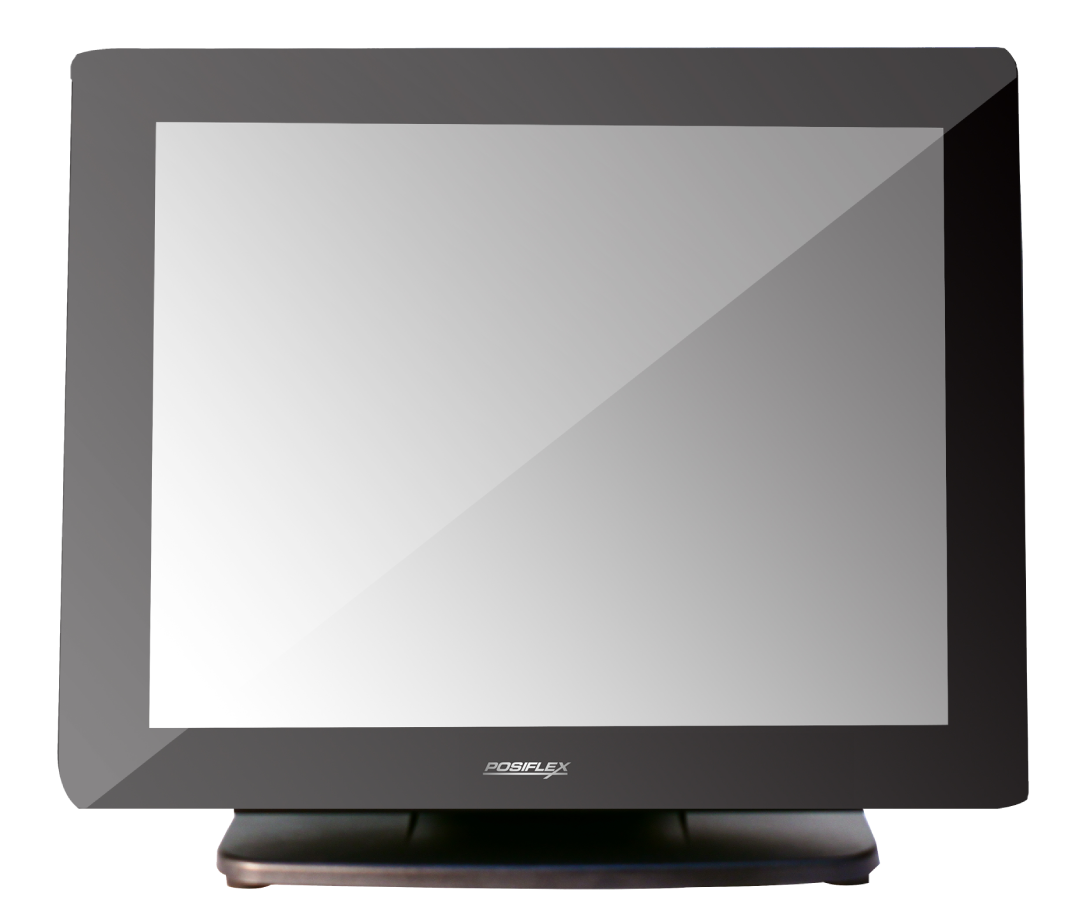

XT6015

Premium Hardware with Powerful Performance

The XT6015 is one of the best POS machines that come with different OS support and inbuilt peripherals that can increase the ease of use.

Additional information

System Configuration

Processor	Kaby lake Core i5-7360U
Storage Device	M.2 connector [SATA Signal Only] x 1 + SATA x 1, w/ power connector (SATA port is available through service window)
System Memory	DDR4 SO-DIMM slot x 1, max 16 GB
OS Support	Windows 7/POSReady 7/Windows Embedded 8.1 Industry 64 bit/Windows 10 IoT 64 bit
Power Supply	12V / 60W
TPM Support	Optional

Display & Touch

LCD Display	15" TFT LCD
Resolution	1024 x 768
Touch Function	True-flat PCAP touch with multi-touch support (IP65 on front panel)

I/O & Expansion

Audio	Internal 2W speaker x 1
CR Port	1, control 2 CR via optional Y-cable
Display Port	VGA x 1, 12V support for Posiflex monitors
Extension Slot	M.2 slot x 1
LAN Port	10 / 100 / 1000 Mb x 1
Powered USB Port	Optional 24V x 1 + 12V x 3 via GEN8 base
Serial Port	RJ50 x 3, 5V/12V support on all COM ports
Standard USB Port	5, USB 3.0 x 2 + USB 2.0 x 3

Built-in Option

WiFi	M.2 WiFi/BT module

Physical Characteristics

Dimension (W x D x H in mm)	372 x 320 x 252.7
Weight (N.W. in Kg)	5.86

Environment

Operating Condition	0°C – 50°C, 20%RH – 90%RH (Equipped with SSD)
Storage Condition	-20°C – 70°C, 10%RH – 90%RH

Attachment Options

Line Display	2 x 20 rear-mount VFD/LCD customer line display, 7-inch color LCD graphical customer line display
POS Monitor	Non-touch TFT LCD: 7-inch/9.7-inch/12.1-inch/14-inch/15-inch,PCAP touch TFT LCD: 9.7-inch/14-inch/15-inch, Resistive touch TFT LCD: 15-inch

Peripherals	MSR, iButton, Rotatable 2D Scanner,RFID, Fingerprint Sensor, Keypad

Brochure
Brochure for XT-6015 (EN)	Download
