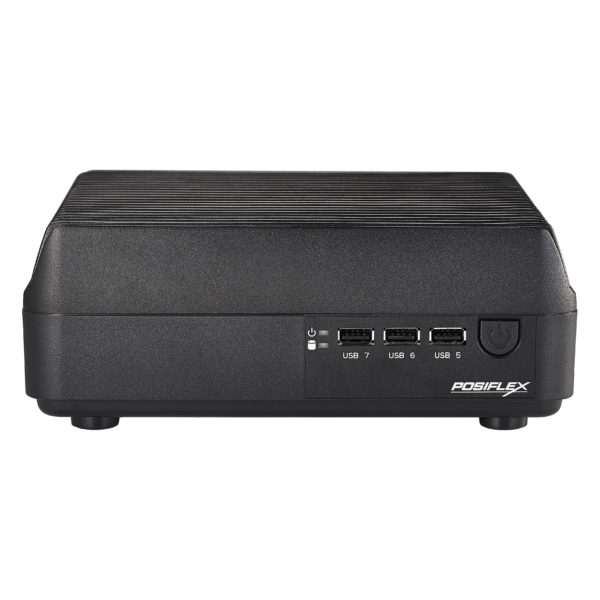

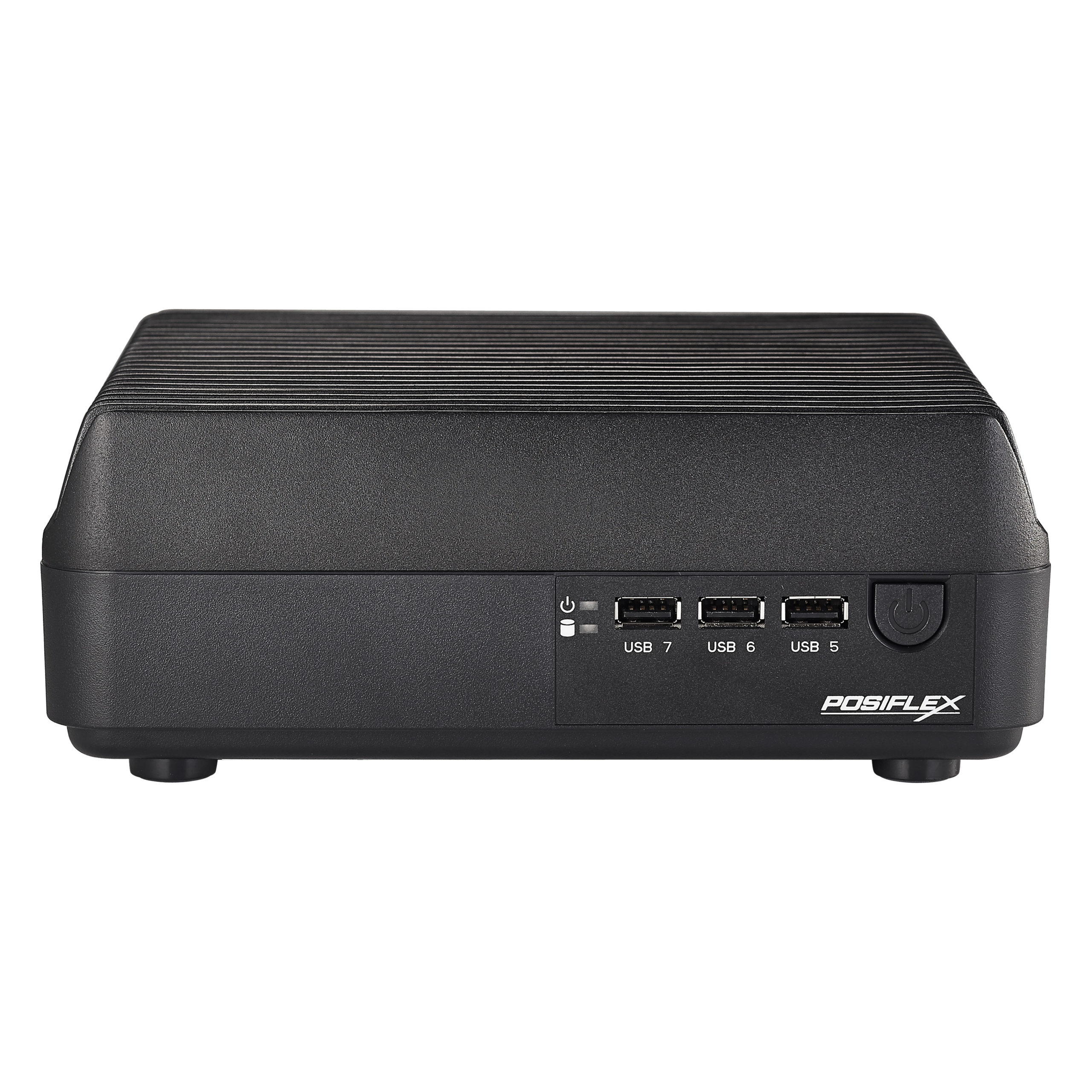

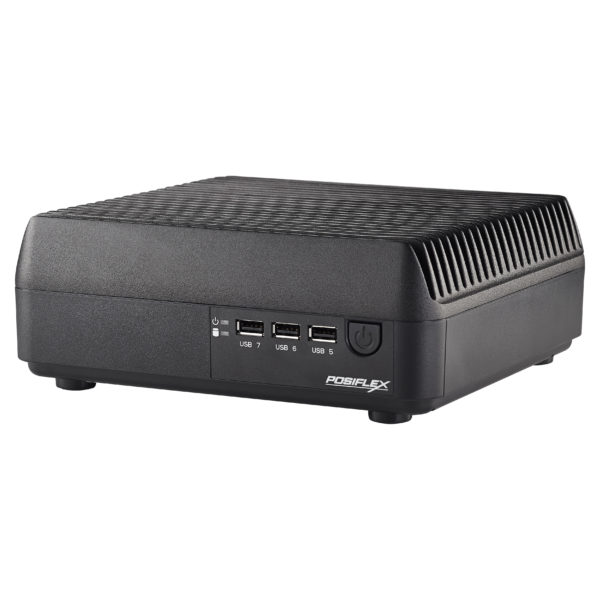

TX5000

High-End Fanless POS Box


“The TX5600 POS box is facilitated with core i3, i5, and i7 along with Windows/ Linux OS support. The posiflex tx5600 is expandable and configurable, despite being smaller in size. The hardware fits a wide range of businesses with a 4th generation Intel Haswell processor. The compact fan-free high-performance pos box facilitates a wide range of businesses.”

Add to Compare

Key Features


  • POS Box
  • Core i3, i5, and i7
  • Windows/Linux OS Support
  • Expandable and Configurable
  • Compact Fan Free High Performance
Category:

Additional information

System Configuration
Processor

Intel Core i3-4330TE/2.4GHz/4M Cache, Intel Core i5-4570TE/2.7GHz up to 3.3GHz/4M Cache, Intel Core i7-4770TE/2.3GHz up to 3.3GHz/8M Cache, Intel G1820/2.7GHz/2M Cache, Intel G3320TE/2.3GHz/3M Cache

Storage Device

SATA Storage x 2, factory default SSD x 1 SATA Storage x 2, factory default SSD x 1

System Memory

DDR3 1333 SO-DIMM x 2, max. 16GB (DDR3 1333/1600 for Core i3 and above CPU) DDR3 1333 SO-DIMM x 2, max. 16GB (DDR3 1333/1600 for Core i3 and above CPU)

OS Support

Windows 7/POSReady 7/Windows Embedded 8.1 Industry/Windows 10 IoT/Linux per request

Power Supply

12V/80W

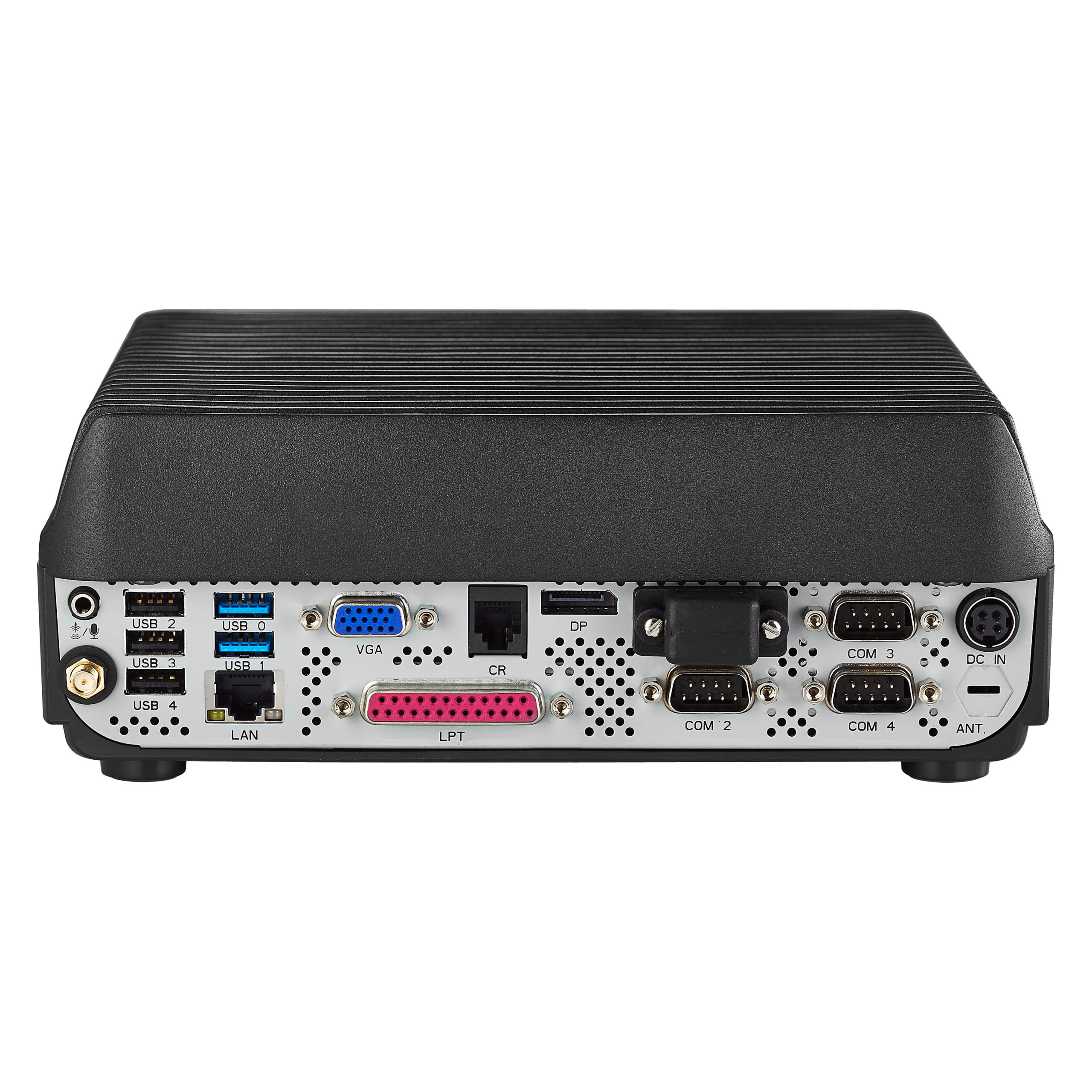

I/O & Expansion
Audio

Internal 2W speaker x 1 (optional) + Mic-in/Line-out

CR Port

1, control 2 CR via optional Y-cable

Display Port

VGA x 1, 12V support for Posiflex monitors; DP x 1

Extension Slot

mini-PCIe slot x 1

LAN Port

10/100/1000 Mb x 1

Serial Port

6, DB9 x 4, COM5/COM6 via optional cable from service window, 5V/12V support on all COM ports

Standard USB Port

8 (USB 3.0/2.0 x 2 + USB 2.0 x 6) 5 (USB 3.0/2.0 x 2 + USB 2.0 x 3)
Built-in Option
Built-in WIFI

mini-PCIe WIFI module
Physical Characteristics
Dimension (W x D x H in mm)

220 x 202 x 83

Weight (N.W. in Kg)

2.75
Environment
Operating Condition

0°C – 40°C, 20%RH – 90%RH (Equipped with HDD), 0°C – 50°C, 20%RH – 90%RH (Equipped with SSD)

Storage Condition

-20°C – 70°C, 10%RH – 90%RH
E-Brochures
Brochure for TX-5000 (EN) Download
Drivers & Utility
TX-5000/TX-5000E Series Chipset device Software installer for Win10_32Bit/64Bit Download
TX-5000/TX-5000E Series Chipset device Software installer for Win7/Win8.1_32Bit/64Bit Download
TX-5000/TX-5000E Series Intel ME Driver for Win7/Win8.1/Win10_32Bit/64Bit Download
TX-5000/TX-5000E Series HotFix Driver for Win7_32Bit Download
TX-5000/TX-5000E Series HotFix Driver for Win7_64Bit Download
TX-5000/TX-5000E Series Graphics Driver for Win10_32Bit Download
TX-5000/TX-5000E Series Graphics Driver for Win10_64Bit Download
TX-5000/TX-5000E Series Graphics Driver for Win7_32Bit/64Bit Download
TX-5000/TX-5000E Series Graphics Driver for Win8.1_32Bit Download
TX-5000/TX-5000E Series Graphics Driver for Win8.1_64Bit Download
TX-5000/TX-5000E Series USB 3.0 Driver for Win7_32Bit/64Bit Download
TX-5000/TX-5000E Series Realtek Audio Driver for Win7/Win8.1/Win10_32Bit/64Bit Download
TX-5000/TX-5000E Series Realtek LAN Driver for Win10_32Bit/64Bit Download
TX-5000/TX-5000E Series Realtek LAN Driver for Win7_32Bit/64Bit Download
TX-5000/TX-5000E Series Realtek LAN Driver for Win8.1_32Bit/64Bit Download
TX-5000/TX-5000E Series Realtek QCOM Dual Band Bluetooth Driver for Win7/Win8.1/Win10_32bit/64Bit Download
TX-5000/TX-5000E Series Realtek QCOM Dual Band WiFi Driver for Win7/Win8.1/Win10_32bit/64Bit Download
TX-5000/TX-5000E Series Intel N105 WiFi Driver for Win7_32Bit/64Bit Download
TX-5000/TX-5000E Series Intel N105 WiFi Driver for Win8.1/Win10_32Bit/64Bit Download
TX-5000/TX-5000E Series Realtek RTL8188EE Single Band WiFi Driver for Win7/Win8.1_32Bit/64Bit Download
TX-5000/TX-5000E Series Realtek RTL8188EE Single Band WiFi Driver for Win10_32Bit/64Bit Download
