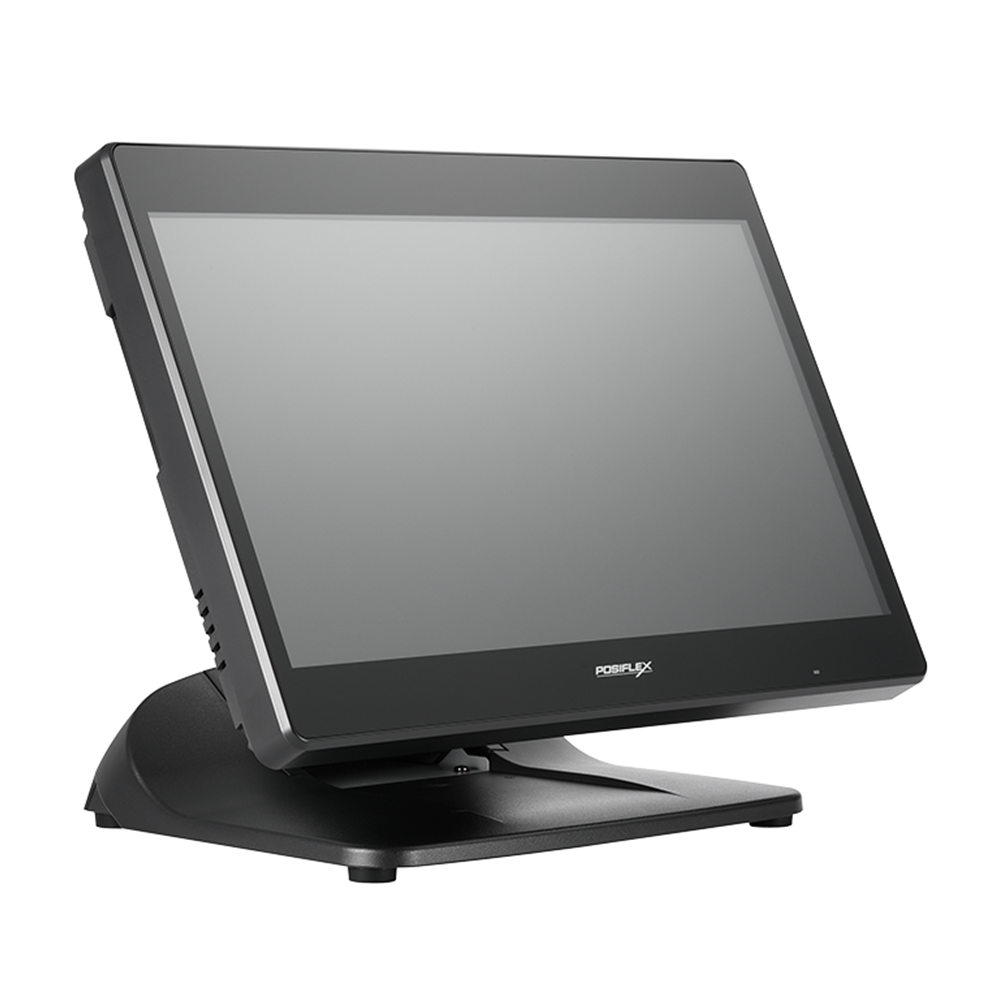

PS-3616PS-3616

PS3616

Outstanding Build Quality Perfect for Any Environment


Packing in a perfect hardware and storage support, the PS 3616 is a machine that offers the utmost features justifying its price.  It is also available with different OS compatibility that can be installed based on the user’s request.

Add to Compare

Key Features


  • 15.6-inch PCAP Touch IP65
  • Latest Apollo Lake Processors
  • Windows 10 IoT/Linux by Request
  • Expandable Memory & Storage Options
  • Tabletop & Wall Mount Options
Category:

Additional information

System Configuration
Processor

Intel Apollo Lake N3350; Intel Apollo Lake J3455

Storage Device

M.2 connector (SATA Signal Only) x 1

System Memory

DDR3L SO-DIMM x 1, max. 8GB

OS Support

Windows 10 IoT

Power Supply

12V / 40W
Display & Touch
LCD Display

15.6″ TFT LCD

Resolution

1366 x 768

Touch Function

True-flat PCAP touch with multi-touch support (IP65 on front panel)
I/O & Expansion
Audio

Buzzer x 1; Optional internal 2W speaker x 1

CR Port

1, control 2 CR via optional Y-cable

Display Port

VGA x 1, 12V support for Posiflex monitors

Extension Slot

M.2 x 1

LAN Port

10 / 100 / 1000 Mb x 1

Parallel Port

1, via optional conversion cable through service window

Powered USB Port

Optional 24V x 1 + 12V x 3 via GEN8 base

PS/2 Port

1, via optional conversion cable through service window

Serial Port

4, DB9 x 3 + RJ50 x 1, 5V/12V support on all COM ports

Standard USB Port

5, USB 3.0 x 2+ USB 2.0 x 2 (on I/O plate) + USB 2.0 x 1 (on the top)
Built-in Option
WiFi

USB WiFi dongle
Physical Characteristics
Dimension (W x D x H in mm)

372 x 252.7 x 291.4
Environment
Operating Condition

0°C – 50°C, 20%RH – 90%RH (Equipped with SSD)

Storage Condition

-20°C – 70°C, 10%RH – 90%RH
Attachment Options
Line Display

2 x 20 rear-mount VFD customer line display, 2 x 20 rear-mount LCD customer line display, 7-inch color LCD graphical line display.

POS Monitor

Non-touch TFT USB LCD: 7-inch/9.7-inch
More
Peripherals

MSR; iButton; RFID; Fingerprint Sensor; Keypad
Brochure
Brochure for PS-3616 (EN) Download
