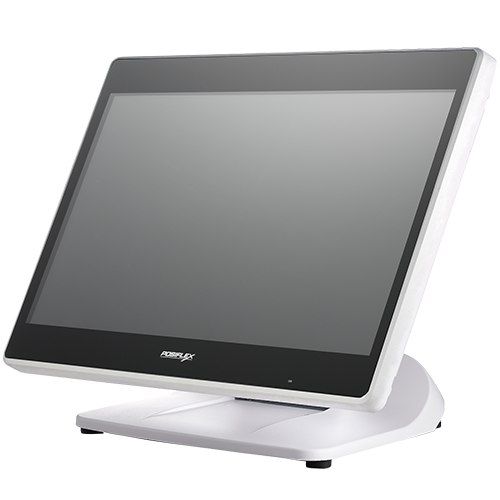

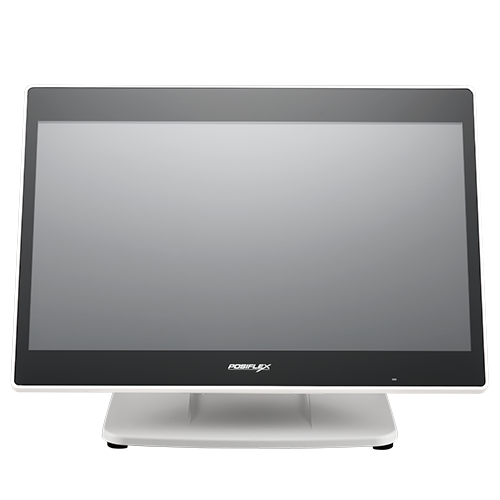

PS-3616 G2 White

PS Series


Crafted with functionality and flexibility in mind, PS-3616-G2 – White* features a 15.6″ wide PCAP touch screen, fanless technology, and an adjustable base to scale to meet both retailers’ and consumers’ expectations—all within an affordable, yet attractive and feature-rich terminal.

Add to Compare

Key Features


  • Intelligently Designed
  • Expanded Capability
  • M.2 WiFi/BT module
  • Reliable
Category:

Additional information

System Configuration
Processor

Intel Elkhart Lake Celeron J6412, up to 2.60 GHz, 1.5M Cache

Storage Device

M.2 connector (SATA Signal Only) x 1

System Memory

DDR4 SO-DIMM x 1, max. 16GB

OS Support

Windows 10 IoT 64 bits

Power Supply

12V/60W
Display & Touch
LCD Display

15.6″ TFT LCD

Resolution

1366 x 768

Touch Function

True-flat PCAP touch with multi-touch support (IP65 on front panel)
I/O & Expansion
Audio

Buzzer x 1; Optional internal 2W speaker x 1

CR Port

1, control 2 CR via optional Y-cable, supporting 24V cash drawer

Display Port

VGA x 1, 12V support for Posiflex monitors

Extension Slot

M.2 slot x 1

LAN Port

10/100/1000 Mb x 1

Parallel Port

1, via optional conversion cable through service window

Powered USB Port

Optional 24V x 1 + 12V x 3 via GEN8 base

PS/2 Port

1, via optional conversion cable through service window

OTG USB

N/A

Serial Port

4, DB9 x 3 + RJ50 x 1, 5V/12V support on all COM ports

Standard USB Port

5, USB 3.0 x 2+ USB 2.0 x 2 (on I/O plate) + USB 2.0 x 1 (on the top)
Built-in Option
WiFi

M.2 WiFi/BT module
Physical Characteristics
Dimension (W x D x H in mm)

372 x 252.7 x 291.4

Weight (N.W. in Kg)

4.7
Environment
Operating Condition

0°C – 50°C, 20%RH – 90%RH (Equipped with SSD)

Storage Condition

-20°C – 70°C, 10%RH – 90%RH
Attachment Options
Line Display

2 x 20 rear-mount LCD customer line display;, 2 x 20 rear-mount VFD customer line display, 7" color LCD graphical line display

POS Monitor

Non-touch TFT USB LCD: 7"/9.7"
More
Attachment

MSR; iButton; RFID; Fingerprint Sensor; Keypad
