Mobile Point of sale SystemMobile Point of sale System
product-slide-img1product-slide-img
product-slide-img1product-slide-img
product-slide-img1product-slide-img

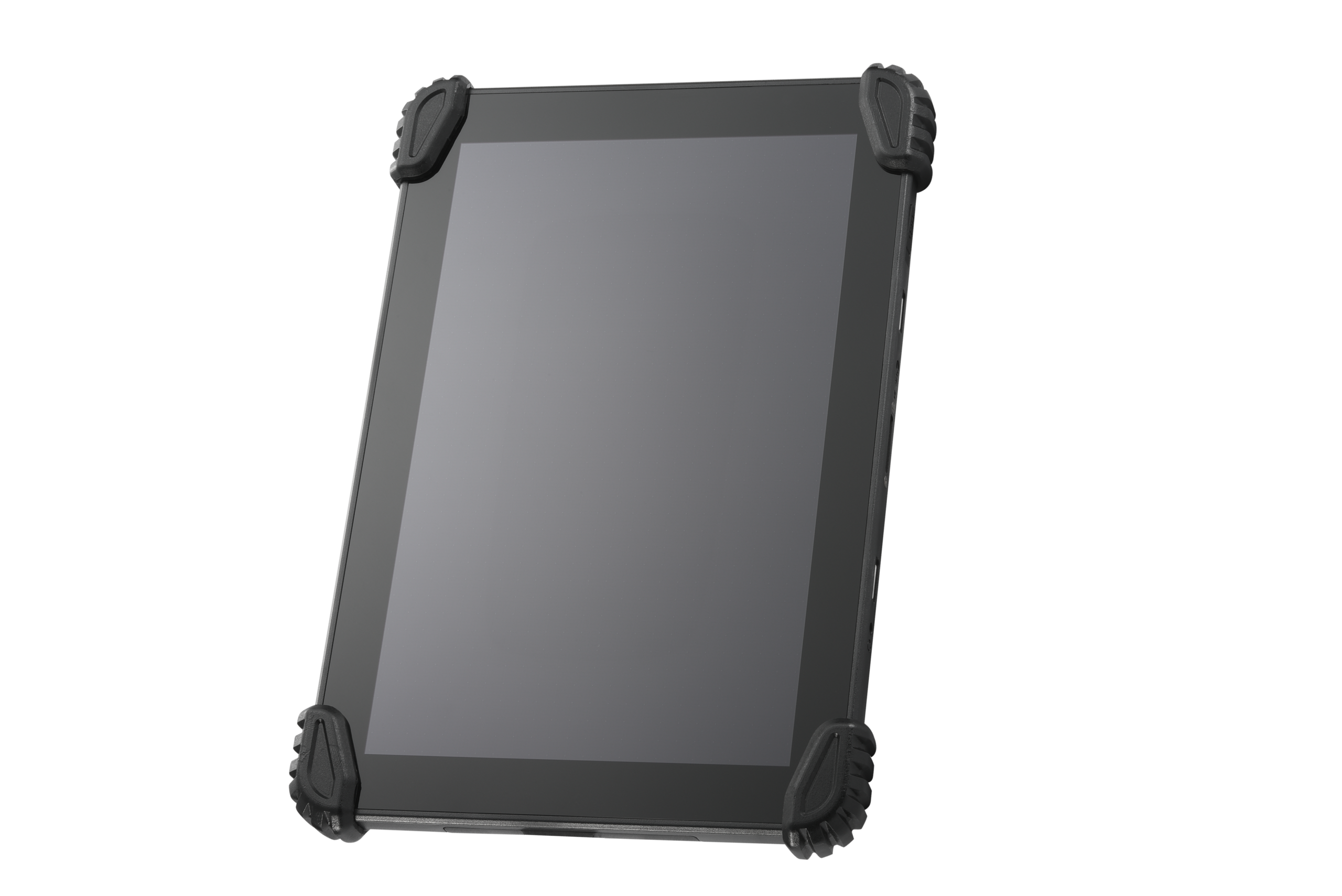

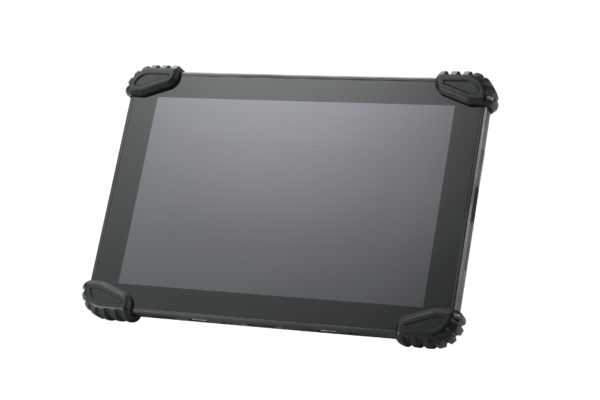

MT5310W

Windows Hybrid POS Tablet


The MT5310W is a Mobile Point of sale System loaded with good hardware and software support offering businesses the ultimate package for businesses. Versatility and powerful performance define this POS terminal and make it a standout.

Add to Compare

Key Features


  • 10.1-inch PCAP Touch Screen
  • Kaby Lake Core processor
  • Windows Operating System
  • 4G/LTE Communication

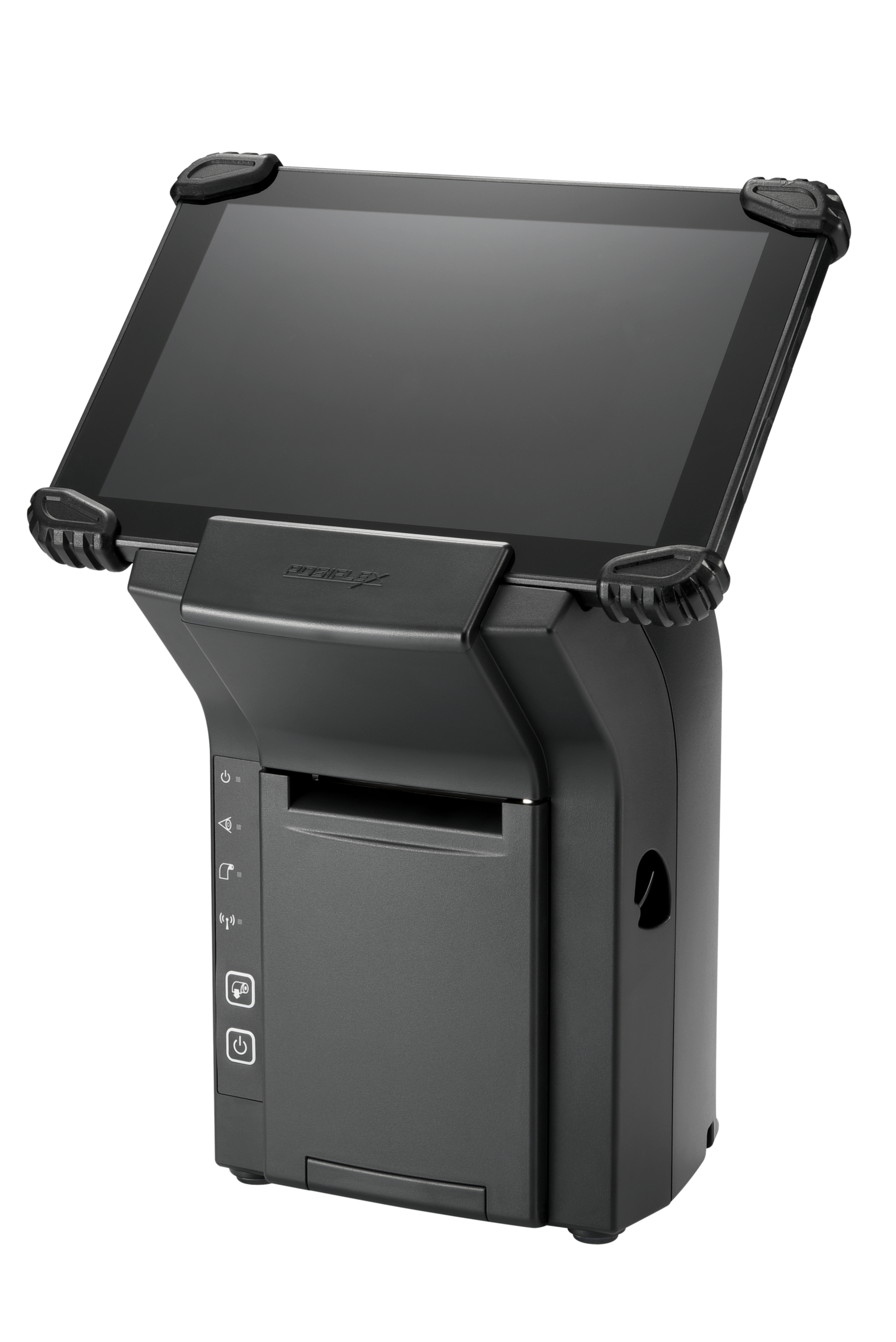

  • 2D scanner, MSR, Fingerprint, and Dock Station
Category:

Additional information

System Configuration
Processor

Intel Kaby Lake Core m3-7y30

Storage Device

64 GB SSD

System Memory

4 GB default, max. 8 GB

OS Support

Windows 10 IoT 64 bits
Display & Touch
LCD Display

10.1" TFT LCD with LED backlight, 1920 x 1200

Touch Function

True-flat PCAP touch with multi-touch support
I/O & Expansion
Audio

Yes

Fingerprint Sensor

Fingerprint Sensor (Active Capacitive technology)
Built-in Option
Built-in MSR

3T MSR reader

Built-in RFID Reader

Support MIFARE Classic 1K & MIFARE Ultralight

Built-in Smartcard Reader

ID Tech MiniSmart II, EMV level 2 certified (cannot co-exist with 4G/LTE module)

Built-in Webcam

5 MP

Built-in WIFI

Dual band 2.4 GHz / 5 GHz WiFi (802.11ac) + BT

Scanner

2D barcode scanner embedded in Pistol Grip

4G / LTE

Selected bands (cannot co-exist with EMV Chip Card Reader)
Physical Characteristics
Dimension (W x D x H in mm)

260.7 x 16.8 x 175

Weight (N.W. in Kg)

980
Environment
Operating Condition

0°C – 50°C, 20%RH – 90%RH

Storage Condition

-20°C – 70°C, 10%RH – 90%RH
Display
Brightness

400 nits
More
Sensor

G sensor, Light sensor

I/O

micro-USB, microSD, nano-SIM, Power Jack
E-Brochures
MT5310W Download
User Manual
User Manual for MT5310W (EN) Download
Drivers & Utility
MT5310W Series Chipset device Software installer for Win10_64Bit Download
MT5310W Series Intel ME Driver for Win10_64Bit Download
MT5310W Series Intel Serial I / O Driver for Win10_64Bit Download
MT5310W Series Graphics Driver for Win10_64Bit Download
MT5310W Series G-Sensoe Driver for Win10_64Bit Download
MT5310W Series Light Sensor Driver for Win10_64Bit Download
MT5310W Series Realtek Audio Driver for Win10_64Bit Download
MT5310W Series Bluetooth Driver for Win10_64Bit Download
MT5310W Series WiFi Driver for Win10_64Bit Download
MT5310W Series USB PC Touch Driver for Win10_64Bit Download
MT4310W / MT-5310W Series 4G module Driver for Win10_64Bit Download
