| Specifications | Mercury EK-1500/EK-1600 Series | ||||
| EK-1510/EK-1610 | EK-1532/EK-1632 | EK-1550/EK-1650 | EK-1552/EK-1652 | ||
| Computer | Processor | Rockchip RK3399, Dual-core Cortex A72 up to 1.8GHz- Qued-core Cortex A53 up to 1.4GHz | Intel Elkhart Lake Celeron J6412, up to 2.60 GHz, 1.5M Cache | Intel Kabyl ake-U Core i3-7100U, 2.40 GHz. 3M Cache: Intel Kabyl ake-U Core i5-7300U. 3.50 GHz, 3M Cache | Intel Tiger Lake UP3 Core i3 Intel Tiger Lake UP3 Core i5 Intel Tiger Lake UP3 Core 17 |
| System Memory | DDR4 4GB | DDR4 SO-DIMM slotx 1, max. 16 GB | DDR4 SO-DIMM slot 1, max. 32 GB | ||
| Storage Device | 32 GB eMMC + microSD slot x 1 | M.2 SSD [SATA Signal Only] x1 | |||
| Intel VPro Support | N/A | N/A | Core i3: N/A Core i5 Optional | Yes, depend on processor | |
| TPM Support | N/A | TPM 2.0 | Optional | TPM 2.0 | |
| Power Bupply | 12V/60W x 1 + 24V/60W x 1 | ||||
| OS Support | Android 9.0*/Android 10.0 with GMS | Windows 10 loT 64 bit/ Windows 11 | Windows 10 loT 64 bit | Windows 10 loT 64 bit/ Windows 11 | |
| Serial Port | 2, RJ50x2,5V/12V support on all COM ports | 3, DB9 x 1 + RJ50 x2, 5V/12V support on all COM ports | |||
| Standard USB Part | 6, USB 3.0 x 1 USB 2.0 x 5 | 8, USB 3.0 x 2+ USB 2.0 x 6 | 8, USB 3.0 x 4+ USB 2.0 x 4 | ||
| OTG USB | Micro-USB x1 | N/A | |||
| Display Port | HDMI x 1 | HDMI x 1 | |||
| LAN Port |
10/100 Mb x 1 10/100/1000 Mb x 1 |
10/100/1000 Mb x 2 | |||
| Audio | Internal 3W speaker 2 | Internal 3W speaker x 2 | |||
| Internal Expansion Slot | N/A | M.2 x 1 | |||
| Display & Touch | LCD | 15 for EK-1500 Series / 15.6 for EK-1600 Series | |||
| Resolution | 1024 x 768 for EK-1500 Series / 1920 x 1080 for EK-1600 Series | ||||
| Touch | True-flat PCAP touch with multi-touch support | ||||

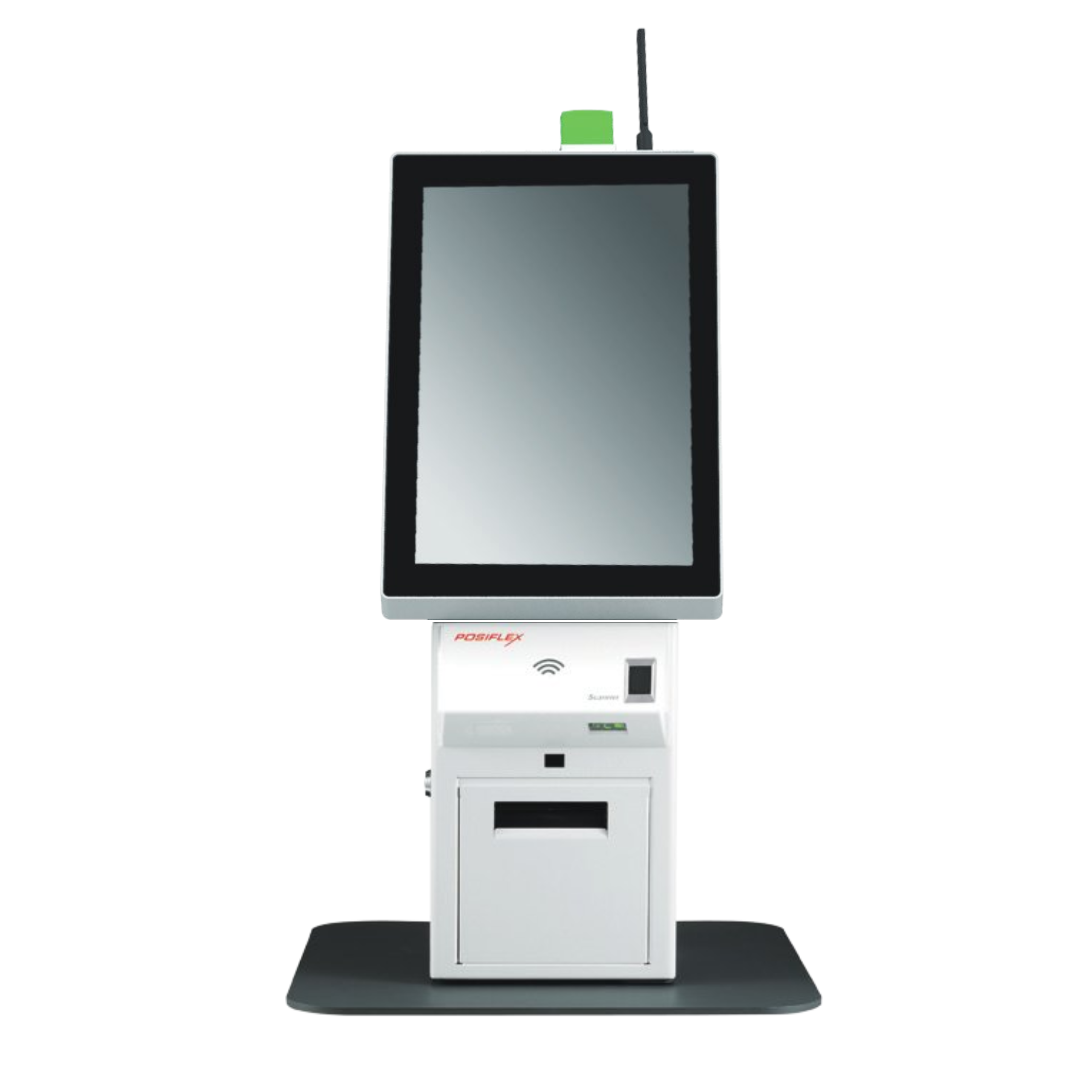

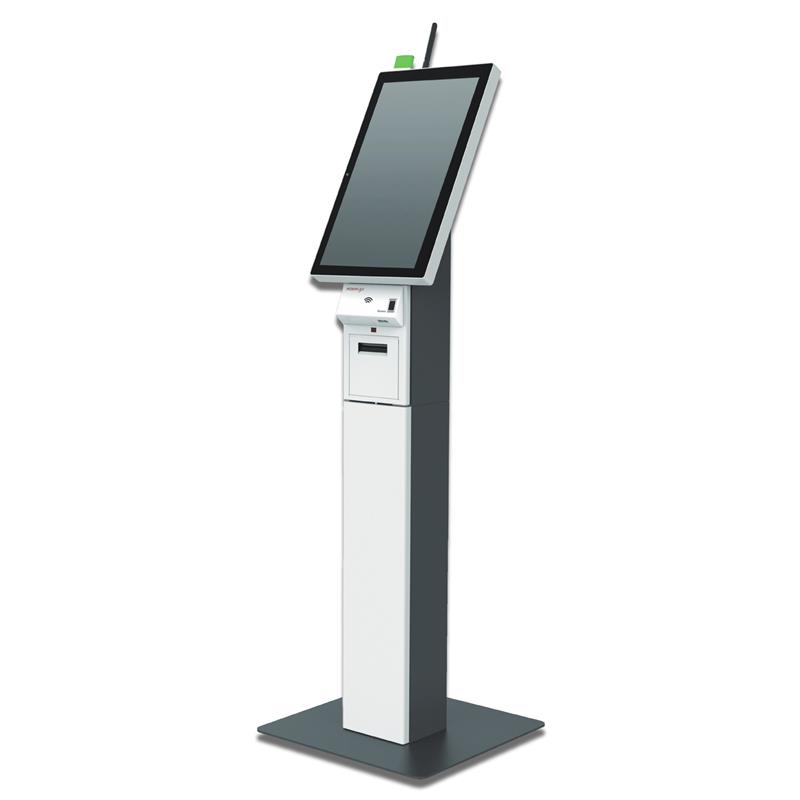

| Physical Dimension | Dimension [ x D x H in mm ] | Countertop version (Landscape): 395 x 395 x 550, Floorstanding version (Landscape) 500 x 500 x 1325 for EK-1500 Series | |||
|
Countertop version (Portrait): 395 646,Floorstanding version (Portrait): 500 500 x 1420 Countertop version (Landscape) 395 x 395x! Floorstanding version (Landscape): 500 500 x 1286 for EK-1600 Series |
|||||
| Weight [N. W. in kg] |
Countertop version: 18.8;Floorstanding version: 31 for EK-1500 Series Countertop version: 18.2;Floorstanding version: 30.4 for EK-1600 Series |
||||
| Environmental | Operating Condition | 0°C 40°C,20%RH 90%RH | |||
| Storage Condition | -20°C 70°C, 10%RH 90%RH | ||||
| Standard Components | Proximity Sensor |
Range from 45cm~80cm (for dark color objectives) Range from 45cm~150cm (for light color objectives) |
|||
| Camera | 1MP wide angle camera | ||||
| Printer | 3 thermal printer w/auto cutter, 200 mm/sec (max.) | ||||
| Optional Components | Status Indicator | RGB Color LED Indicator (for EK-1600 Series portrait mode only) | |||
| WiF | USB dongle (cannot coexist with 4G/LTE) | ||||
| Scanner | 2D barcode scanner | ||||
| EMV Payment Device Bracket Support | Custom bracket support for various EMV payment devices | ||||
| Fingerprint Sensor | Optical type | ||||
| NFC/AAD Reader | Support ISO/IEC 14443-A&B (MIFARE), JIS x 6319-4 (Felica),ISO/IEC 15693, NFC protocols tag read/write (ISO/IEC-18092) | ||||
| 4G/LTE Communication | N/A (for EK-1500 Series): Support selected bands & countries with full SIM slot (mini-PCle module) by request (for EK-1600 Series) | ||||
Mercury EK-1500 /EK-1600
Seamless Integration, Effortless Efficiency
- 15” or 15.6” or 21.5”or 23.8” true-flat PCAP touch screen
- Flexible configurations: floor-standing or countertop
- Modular design for easy serviceability
- A good value kiosk in entry-level category
- Popular uses: product display & advertising, ordering & payment, click & collect, ticketing & e-reservations, wayfinding & customer guidance
