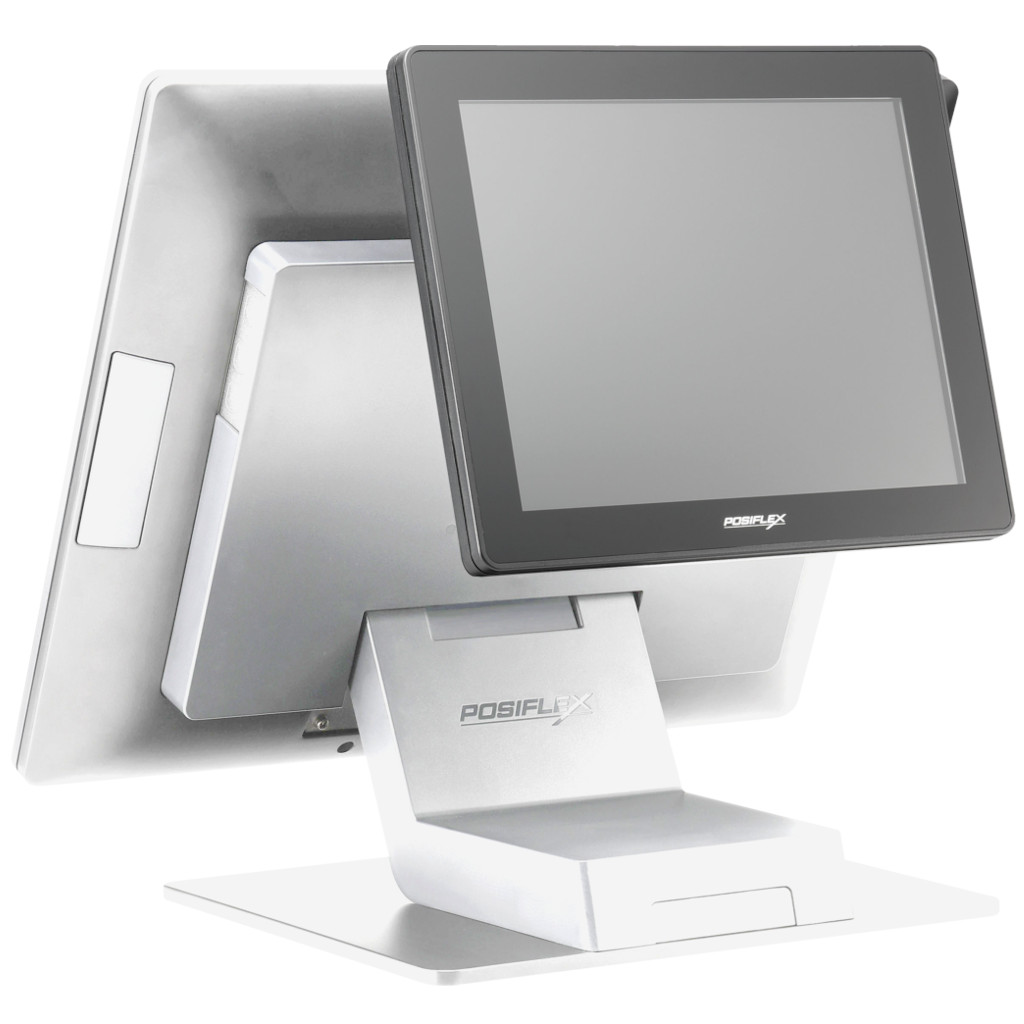

LM4010R

Secondary Monitor


The LM4010R comes with a 9.7-inch bezel-free LCD 2nd monitor displaying a resolution of 1024*768. This monitor is a POS peripheral compatible with RT POS terminals.

Add to Compare

Key Features


  • 9.7-inch Secondary LCD Monitor
  • Viewing Angles: 60-70 degrees
  • Supports RT POS terminals
  • Bezel-Free Display
Category:

Additional information

System Configuration
Power Supply

12V from Posiflex terminal VGA port
Display & Touch
LCD Display

9.7" TFT LCD

Resolution

Up to 1024 x 768
Physical Characteristics
Viewing Angle

60 / 70 / 70 / 70 degree (U / D / L / R)
General Specification
Display Interface

VGA
Others
Active Area

196.61 (H) x 147.46 (V)

Pixel Arrangement

RGB Vertical Stripe

Pixel Pitch

0.192 (H) x 0.192 (V)
Display
Brightness

350 cd/m2

Contrast Ratio

20.83402778

Response Time

20 ms (Raising + Falling)
User Manual
User Manual for TM/LM401X (EN) Download
