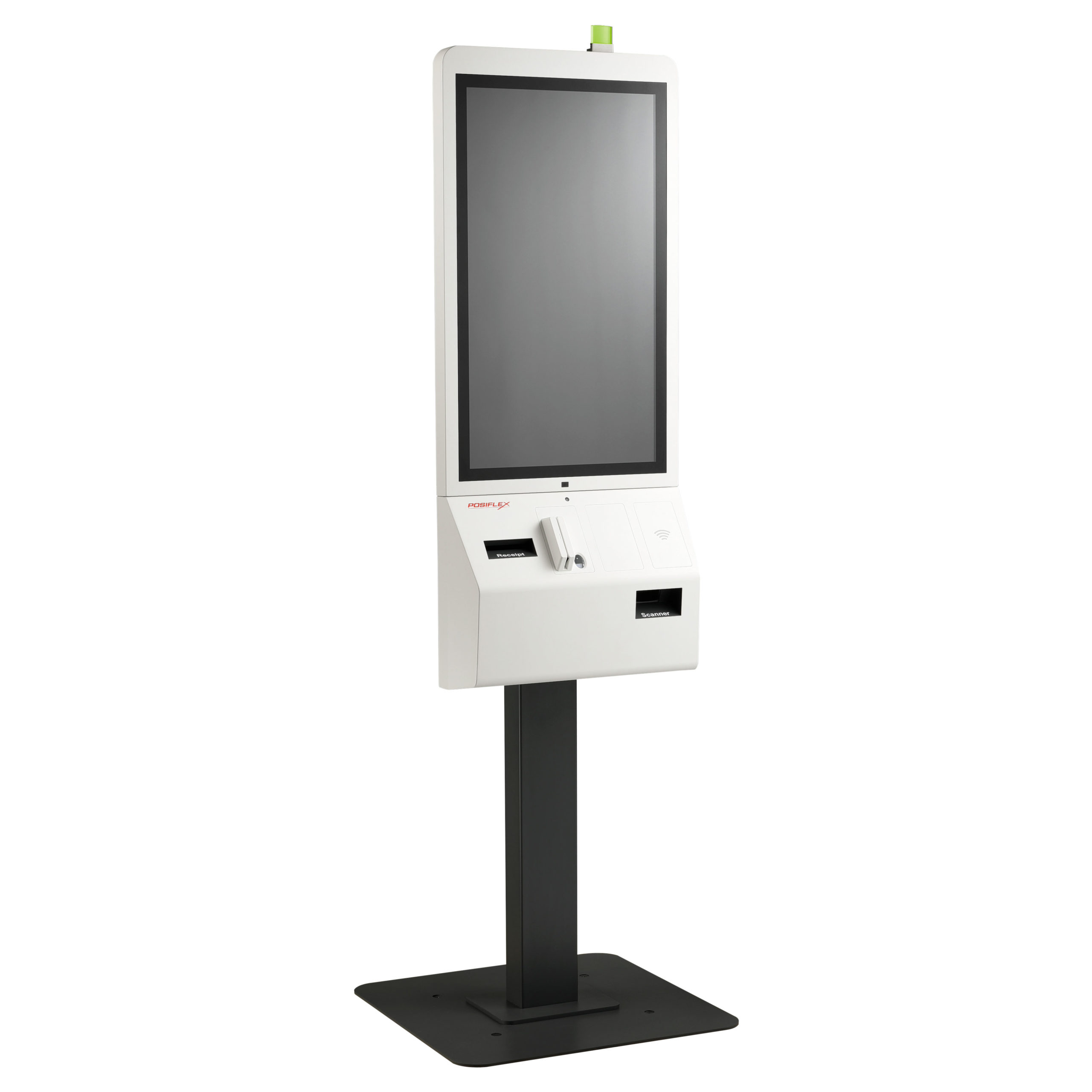

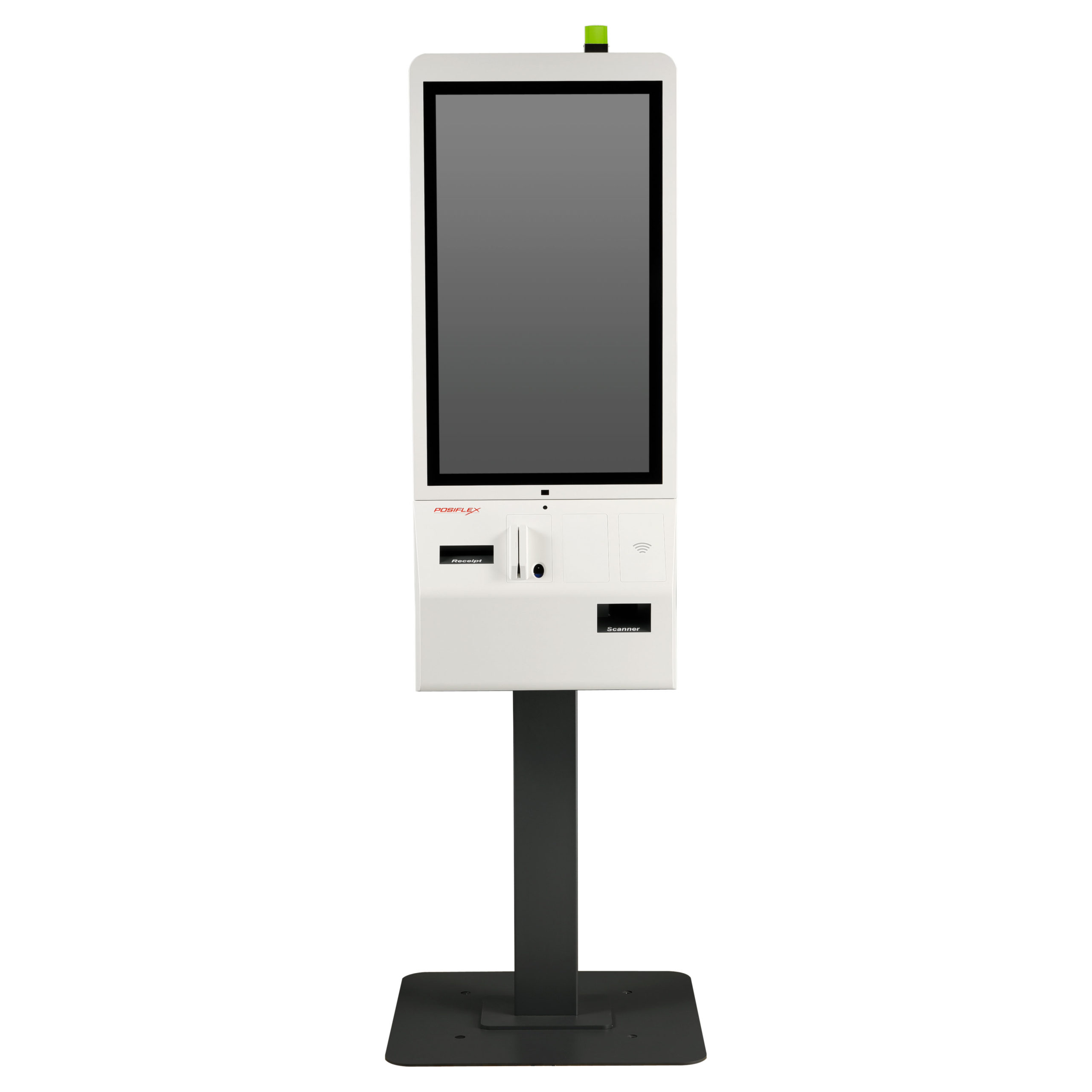

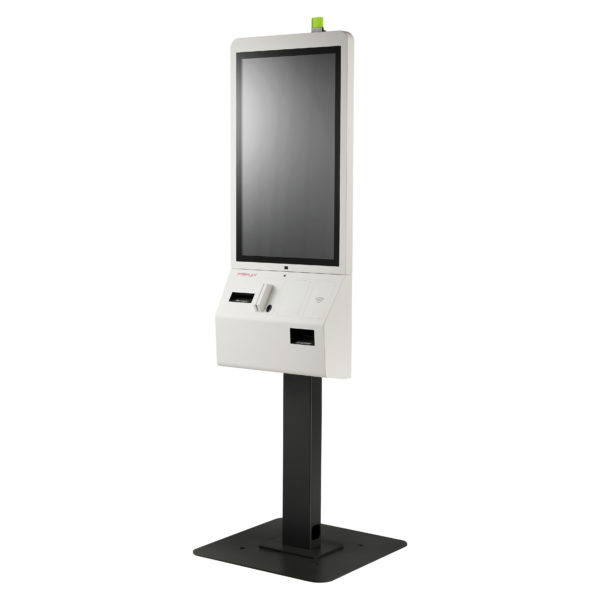

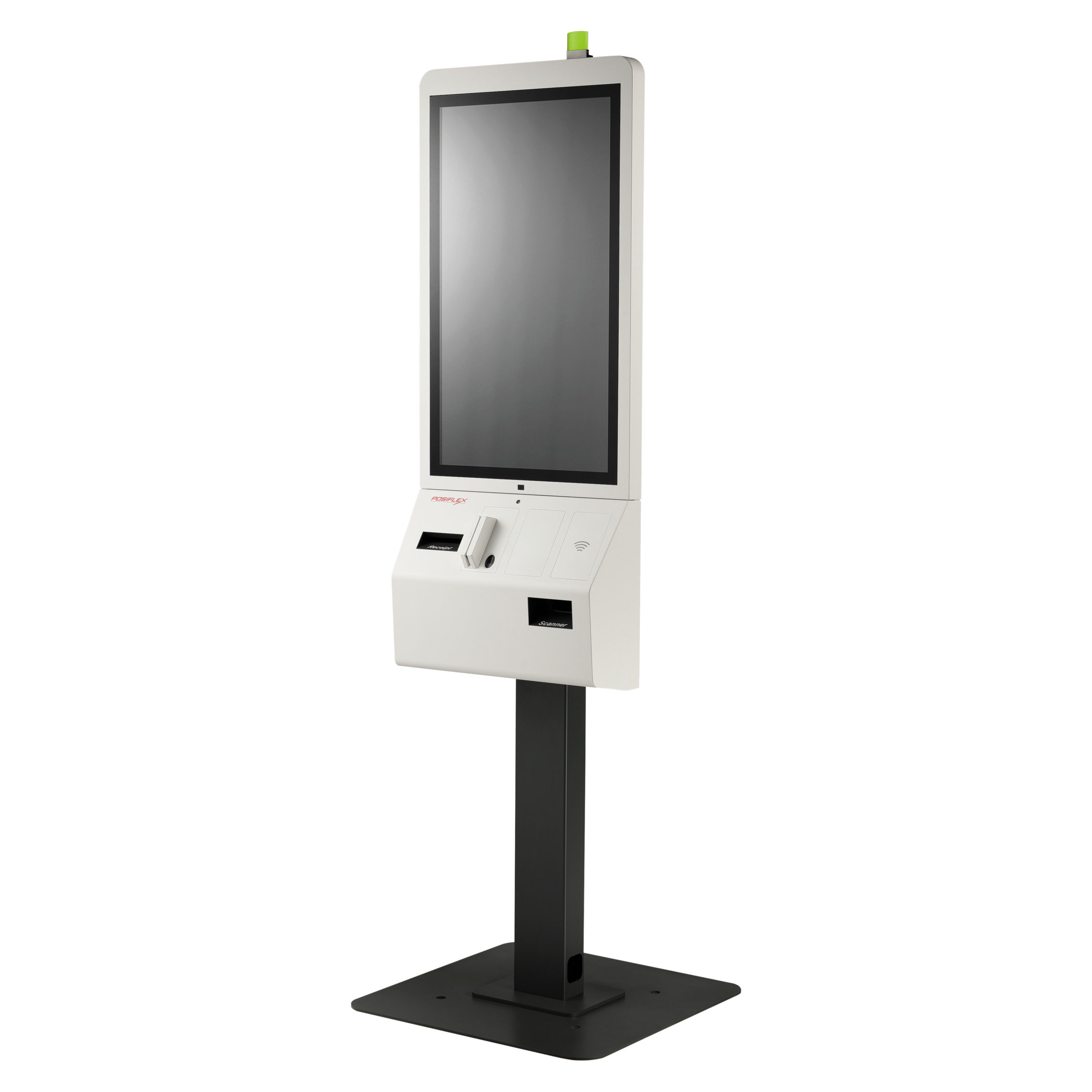

KT3230 / 3250

Interactive Kiosk

The KT3230/3250 comes with a 32-inch screen that offers all the information of a brand for a customer to engage, order, and pay. Designed specifically for retail stores, quick service, and fast-casual restaurants, this kiosk has all the options for a business owner to run trouble-free operations.

Add to Compare

Key Features

32-inch PCAP Touch Screen
Quad Core or i3
Windows/Linux/Android OS Support

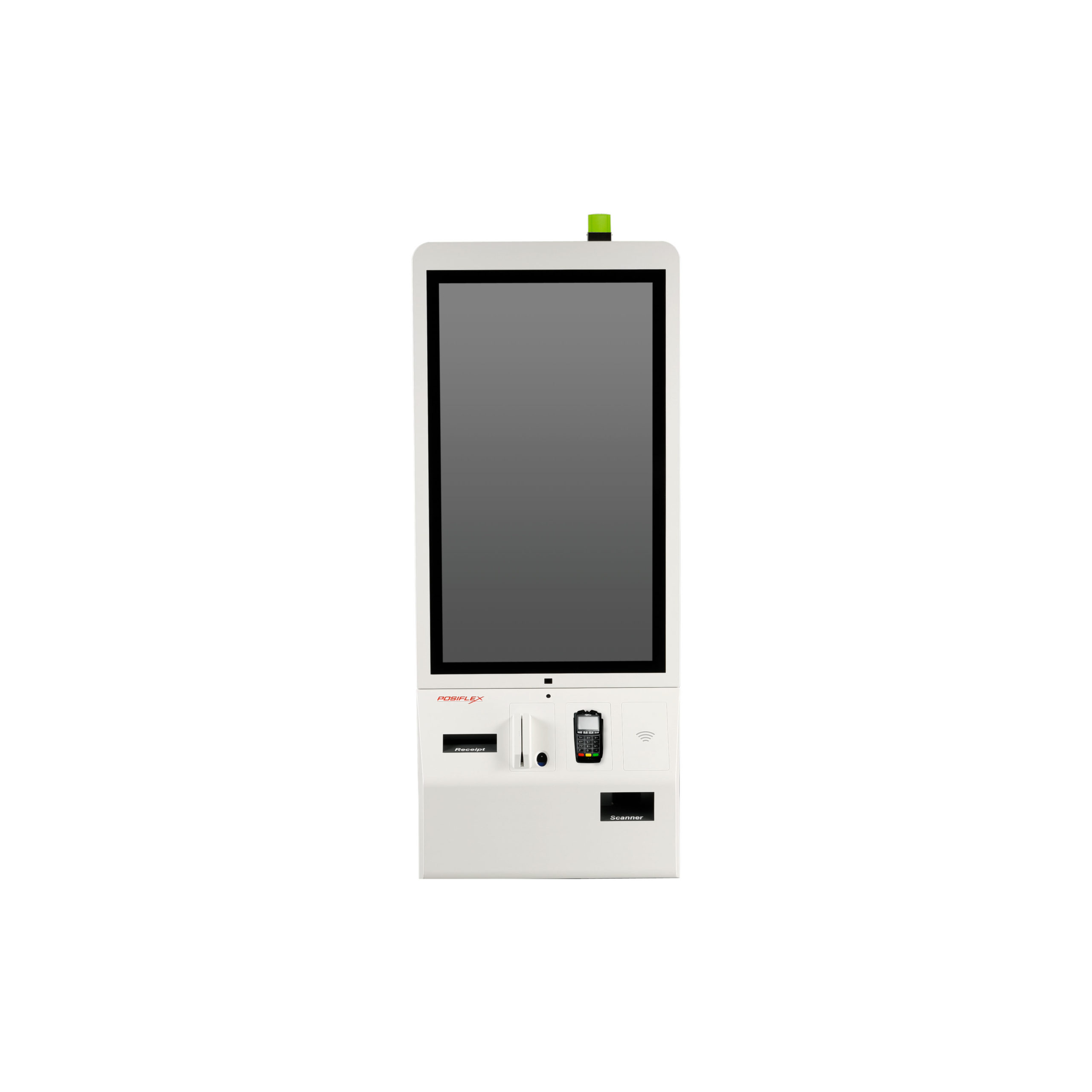

Range of Mounting options
Easy Maintenance and wide range of peripherals

Category: Self Service KIOSK

Additional information

System Configuration

Processor	Intel Skylake Core i3-6100U, Dual Core, 2.30 GHz, 3M cache
Storage Device	SATA SSD x 1
System Memory	DDR3L SO-DIMM slot x 1, max. 8 GB ;DDR4 SO-DIMM slot x 2, max. 16 GB
OS Support	Win 7/POSReady 7/WE 8.1 Industry 64 bit/ Win 10 IoT 64 bit
Power Supply	12V / 50W

Display & Touch

LCD Display	32"
Resolution	1920 x 1080
Touch Function	True-flat PCAP touch with multi-touch support

I/O & Expansion

Audio	Internal 3W speaker x 2
Extension Slot	M.2 x 1
Fingerprint Sensor	Optical type
LAN Port	10 / 100 / 1000 Mb x 1

Built-in Option

Built-in MSR	3 tracks ISO or JISII (HID/VCOM selection)
Built-in Printer	3″ detachable printer w/auto cutter, 250 mm/sec (default.)
Built-in Webcam	1 MP wide angle camera
Built-in WIFI	M.2 WiFi/BT module
Scanner	2D barcode scanner
Proximity Sensor	Range from 60 cm to 100 cm

Physical Characteristics

Dimension (W x D x H in mm)	Main Unit: 495 x 258 x 1179 With Stand: 495 x 258 x 1934
Weight (N.W. in Kg)	Main Unit: 27 With Stand: 59.5

Environment

Operating Condition	0°C – 50°C, 20%RH – 90%RH (Equipped with SSD)
Storage Condition	-20°C – 70°C, 10%RH – 90%RH

E-Brochures
Brochure for KT3230/3250 (EN)	Download

Interactive Kiosk

Key Features

Additional information

Related Products

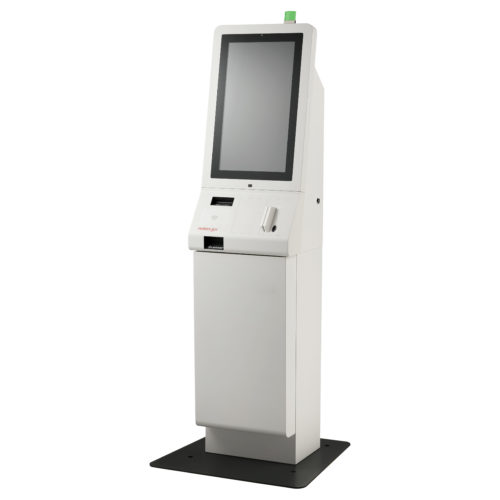

KT2100 / 2150
