HS3314HS3314

HS3314

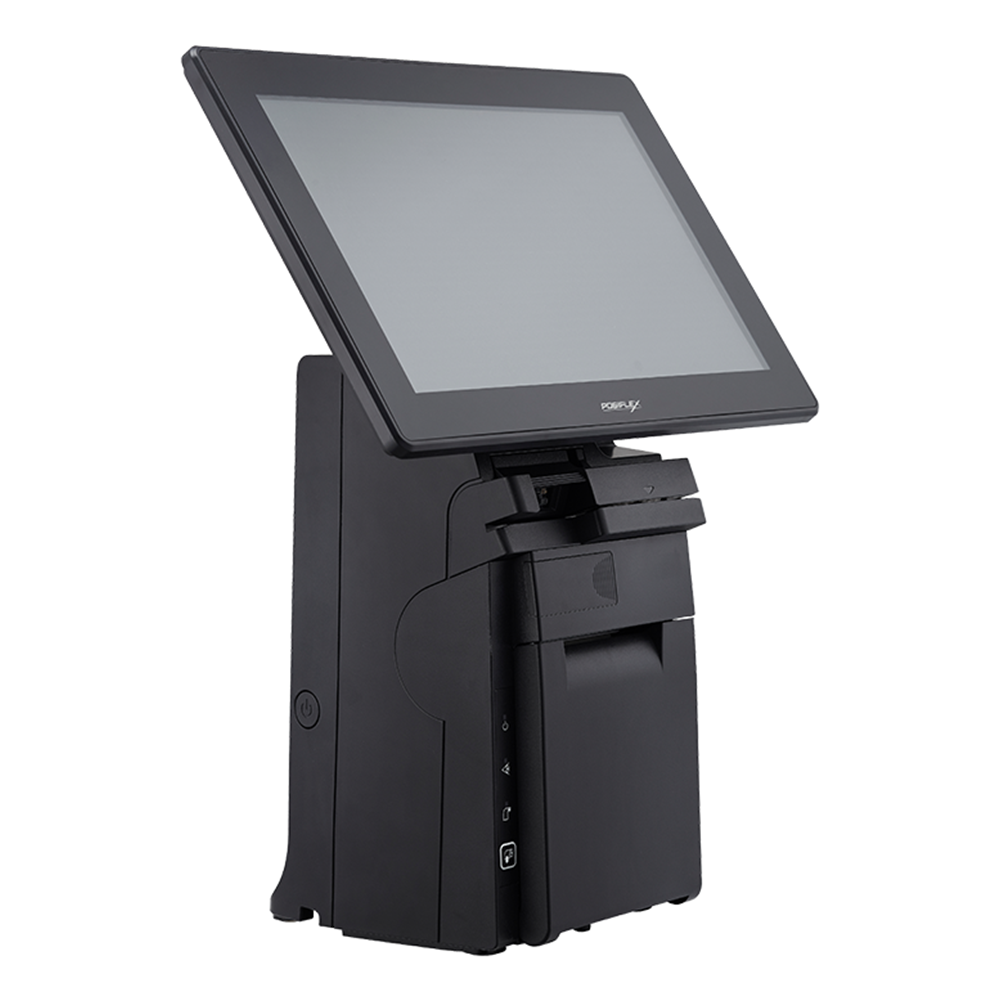

Compact All-in-one POS Terminal


The HS 3314 comes loaded with features making it a standout and prioritizes versatility and ease of use for businesses. With a water-proof front panel, the machine comes with hardware apt for most environments.

Add to Compare

Key Features


  • 14-inch PCAP Touch IP65
  • Latest Rockchip RK3399 processor
  • Latest Android OS (Ver 9.0)
  • Mifare NFC, 2D Scanner, 4G Sim,Fingerprint, WIFI, and MSR options
  • Inbuilt 3-inch Receipt Printer
Category:

Additional information

System Configuration
Processor

Rockchip RK3399, Dual-core Cortex A72 up to 1.8GHz + Quad-core Cortex A53 up to 1.4GHz

Storage Device

16 GB eMMC + microSD slot x 1, upgradable to 32 GB

System Memory

2 GB DDR4, upgradable to 4 GB

OS Support

Android 9.0

Power Supply

24V / 60W
Display & Touch
LCD Display

14” TFT LCD

Resolution

1366 x 768

Touch Function

True-flat PCAP touch with multi-touch support (IP65 on front panel)
I/O & Expansion
Audio

2W speaker x 1+ lineout x 1

CR Port

1, controlling 2 CR (24V drive)

Display Port

HDMI x 1 , SDK available for software integration

Extension Slot

mini-PCIe slot x 1

Fingerprint Sensor

Optical type

LAN Port

10 / 100 / 1000 Mb x 1

OTG USB

Micro-USB x 1

Serial Port

DB9 x 2, 5V/12V support on all COM ports

Standard USB Port

3, USB 3.0 x 1 + USB 2.0 x 2
Built-in Option
Built-in Printer

3-inch Detachable Printer w/auto cutter, 250 mm/sec (max)

Scanner

2D barcode scanner

4G / LTE

Single SIM slot, selected band support

RFID Reader

Support MIFARE Ultralight and Classic 1K card (HID/VCOM Selectable)

WiFi

Mini-PCIe WiFi/BT module
Physical Characteristics
Dimension (W x D x H in mm)

371.5 x 198 x 473

Weight (N.W. in Kg)

5.8
Environment
Operating Condition

0°C – 50°C, 20%RH – 90%RH

Storage Condition

-20°C – 70°C, 10%RH – 90%RH
Others
Magnetic Stripe Reading

3 tracks ISO or JISII (HID/VCOM selection)
More
iButton

Yes (cannot coexist with Fingerprint Sensor)
Brochure
Brochure for HS-3314 (EN) Download
