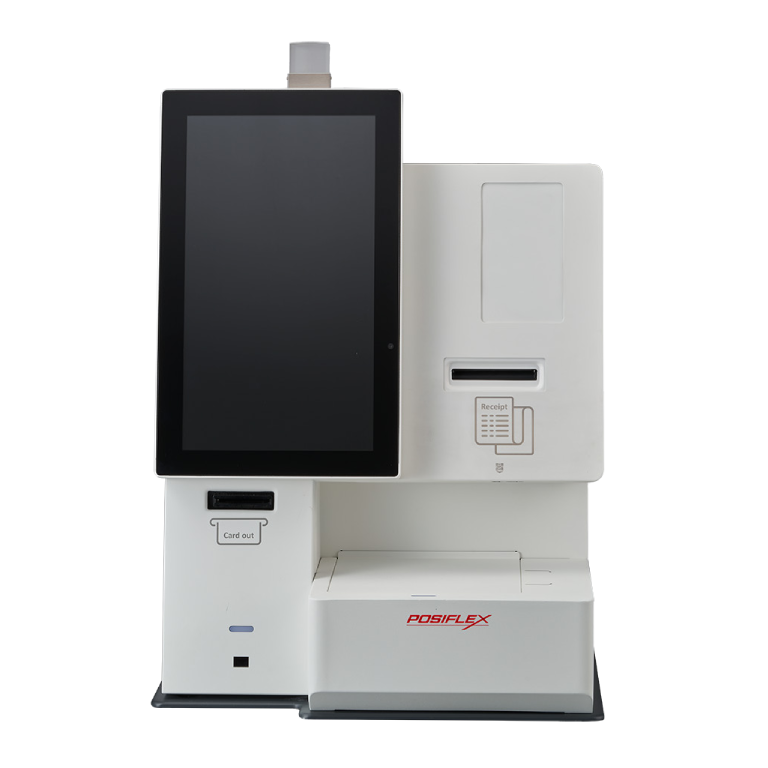

HK-1652


The HK-1652 is an intuitive and user-friendly self-check-in/check-out kiosk designed to enhance service quality &
address labour shortages. This highly integrated self-service kiosk offers high security and seamless functionality.

Add to Compare

Key Features


  • 15.6” TFT LCD with LED backlightt
  • Windows 10 IoT 64 bit/Windows 11 IoT GAC
  • Intel Tiger Lake UP3 Core i3-1115G4E
  • Internal 3W speaker x 1
Category:

Additional information

System Configuration
Processor

Intel Tiger Lake UP3 Core i3-1115G4E , up to 3.90 GHz, 6M Cache/i5-1145G7E , up to 4.10 GHz, 8M Cache / i7-1165G7, up to 4.70 GHz, 12M Cache

Storage Device

M.2 SSD (SATA Signal Only) x 1

System Memory

DDR4 SO-DIMM slot x 1, max. 32GB

OS Support

Windows 10 IoT 64 bit/Windows 11 IoT GAC

Power Supply

24V/120W

Printer

3" thermal printer w/auto cutter, 250 mm/sec (max.)

Intel vPro Support

Yes, depends on CPU installed

TPM Support

Yes, TPM 2.0
Display & Touch
LCD Display

15.6” TFT LCD with LED backlight

Resolution

1920 x 1080

Touch Function

PCAP supporting multi-touch
I/O & Expansion
Audio

Internal 3W speaker x 1

Display Port

HDMI x 1

Extension Slot

1 x M.2 2230 for Wi-Fi/BT

LAN Port

10/100/1000 Mb x 2

Serial Port

3, DB9 x 1 + RJ50 x 2, 5V/12V support on all COM ports

Standard USB Port

USB 3.0 x 4 + USB 2.0 x 4
Built-in Option
Scanner

2D barcode scanner

4G / LTE

Support selected bands & countries with full SIM slot by request (cannot coexist with WiFi)

Proximity Sensor

1. Range from 45cm ~ 80cm (for dark color object), 2. Range from 45cm ~ 150cm (for light color object)

Camera

1MP wide angle camera

WiFi

Wi-Fi 5/ BT4.2
Physical Characteristics
Dimension (W x D x H in mm)

460.6 x 441.3 x 677.8

Weight (N.W. in Kg)

25.5 kg
Environment
Operating Condition

0°C – 40°C, 20%RH – 90%RH

Storage Condition

-20°C – 70°C, 10%RH – 90%RH
