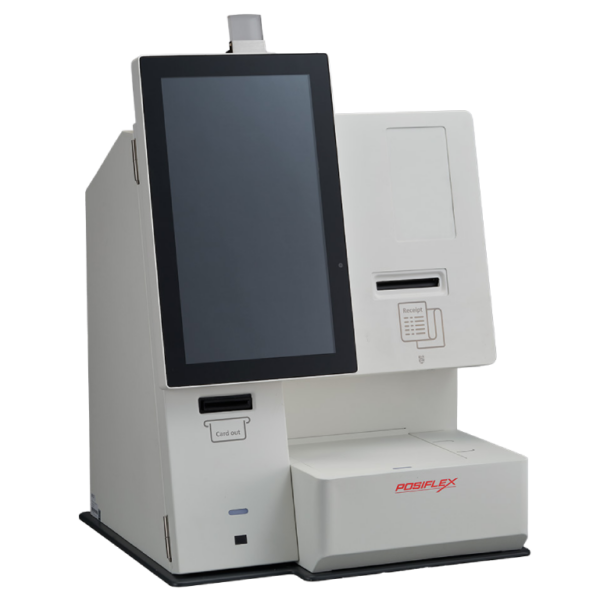

The HK-1632 is an intuitive and user-friendly self-check-in/check-out kiosk designed to enhance service quality &
address labour shortages. This highly integrated self-service kiosk offers high security & a seamless user
experience.

Key Features

15.6” TFT LCD with LED backlight
Windows 10 IoT 64 bit/Windows 11 IoT GAC
Internal 3W speaker x 1
2D barcode scanner

Category: HK series

Specifications

Additional information

System Configuration

Processor	Intel Elkhart Lake Celeron J6412, up to 2.60 GHz, 1.5M Cache
Storage Device	M.2 SSD [SATA Signal Only] x 1
System Memory	DDR4 SO-DIMM x 1, max 16GB
OS Support	Windows 10 IoT 64 bit/Windows 11 IoT GAC
Power Supply	24V/120W
Printer	3" thermal printer w/auto cutter, 250 mm/sec (max.)
TPM Support	Yes, TPM 2.0

Display & Touch

LCD Display	15.6” TFT LCD with LED backlight
Resolution	1920 x 1080
Touch Function	PCAP supporting multi-touch

I/O & Expansion

Audio	Internal 3W speaker x 1
Display Port	HDMI x 1
Extension Slot	1 x M.2 2230 for Wi-Fi/BT
LAN Port	10/100/1000 Mb x 2
OTG USB	Micro – USB x 1
Serial Port	3, DB9 x 1 + RJ50 x 2, 5V/12V support on all COM ports
Standard USB Port	USB 3.0 x 2 + USB 2.0 x 6

Built-in Option

Scanner	2D barcode scanner
4G / LTE	Support selected bands & countries with full SIM slot by request (cannot coexist with WiFi)
Proximity Sensor	1. Range from 45cm ~ 80cm (for dark color object), 2. Range from 45cm ~ 150cm (for light color object)
Camera	1MP wide angle camera
WiFi	USB dongle (cannot coexist with 4G/LTE)

Physical Characteristics

Dimension (W x D x H in mm)	460.6 x 441.3 x 677.8
Weight (N.W. in Kg)	25.5 kg

Environment

Operating Condition	0°C – 40°C, 20%RH – 90%RH
Storage Condition	-20°C – 70°C, 10%RH – 90%RH
