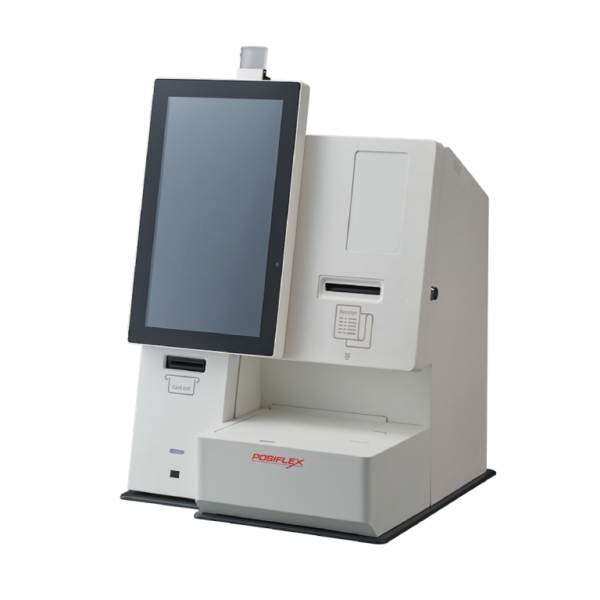

HK-1610


The HK-1610 is an intuitive and user-friendly self-check-in/check-out kiosk, designed to enhance service quality
and address labor shortages. This highly integrated self-service kiosk offers high security and a seamless user
experience.

Add to Compare

Key Features


  • 15.6” TFT LCD with LED backlight
  • Android 9.0*/Android 10.0 with GMS
  • Internal 3W speaker x 1
  • 2D barcode scanner
Category:

Additional information

System Configuration
Processor

Rockchip RK3399

Storage Device

Default 32GB eMMC + microSD slot x 1

System Memory

DDR4 4GB

OS Support

Android 9.0*/Android 10.0 with GMS

Power Supply

24V/120W
Display & Touch
LCD Display

15.6” TFT LCD with LED backlight

Resolution

1920 x 1080

Touch Function

PCAP supporting multi-touch
I/O & Expansion
Audio

Internal 3W speaker x 1

Display Port

HDMI x 1

Extension Slot

–

LAN Port

10/100 Mb x1, 10/100/1000 Mb x1

OTG USB

Micro-USB x 1

Serial Port

RJ50 x 2, 5V/12V support on all COM ports

Standard USB Port

USB 3.0 x 1 + USB 2.0 x 5
Built-in Option
Scanner

2D barcode scanner

4G / LTE

Support selected bands & countries with full SIM slot by request (cannot coexist with Wi-Fi

Proximity Sensor

1. Range from 45cm ~ 80cm (for dark color object), 2. Range from 45cm ~ 150cm (for light color object)

WiFi

Wi-Fi 5/ BT4.2
Physical Characteristics
Dimension (W x D x H in mm)

460.6 x 441.3 x 677.8

Weight (N.W. in Kg)

25.5 kg
Environment
Operating Condition

0°C – 40°C, 20%RH – 90%RH

Storage Condition

-20°C – 70°C, 10%RH – 90%RH
